Kirchhoff Problem 1
The circuit in this problem will be powered by two batteries (One with a known voltage and the other unknown). It will have three currents, two of which will be unknown.

You must use Kirchhoff's Circuit Laws to solve the problem.

Click the begin button to start the problem

Name:

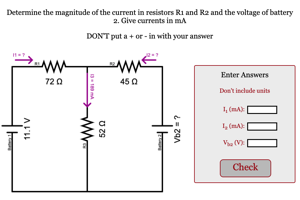

Kirchhoff's Problem 1 Picture
Begin
See Available Languages
Your browser does not support HTML 5.0 Canvas...get a better browser!!!
Determine the magnitude of the current in resistors R1 and R2 and the voltage of battery 2. Give currents in mA

DON'T put a + or - in with your answer

Enter Answers
Don't Enter Units
I1 (mA):
I2 (mA):
Vb2 (V):
Check
